¶ Script for Full Development Environment Install (V2)
Today we are talking about setting up your development environment so that you are prepped in working with Clarity eCommerce Framework and other Clarity development actions.
¶ OS, IIS and Ninite
The first thing we're gonna do is start from scratch. What I am showing here is a virtual machine that we've set up with a blank Windows 10 install before any updates have been run. We're going to go through the full gamut.
With the first round of things to setup or install, the first thing you need to think about are what kinds of things do I need to install? What do we need to configure in Windows in order to be prepped and ready for development? Some of the stuff we know we're gonna need to install are things like the different browsers like Chrome and Firefox and making sure Internet Explorer is enabled in addition to Edge.
In some cases you may want to install other browsers if you're doing front end development such as Safari. However, in most of those cases you're probably gonna want to use BrowserStack instead which is a website that will create a virtual machine with just a particular version of Mac or Linux or Windows and whatever version of browser you need it to load up for compatibility purposes. So that's where you'll be doing a lot of that there but if it's faster and easier for you and you know that you're up applying it appropriately, you're welcome to install those things locally (just not to the servers).
There is the IDE software like Visual Studio and Visual Studio Code, ReSharper, maybe you're installing WebStorm or PhpStorm, in order to work with those particular kinds of solutions. That's all specific to what you're doing. I'm going to run a lot of different installs here, of which some are not going to be required.
¶ OS Updates
Since this is a raw Windows 10 install, I need to run the Windows Updates.
| Screenshot | Description |
|---|---|
| Go to the Start Menu and type "Check for updates". Sometimes it doesn't like to do that because the Windows* self-indexer hasn't finished running yet. | |
| If it doesn't come up, you can click the Start Pearl and choose the Settings gear on the left, then click on Update & Security. | |
| Now in the Updates screen, click Check for Updates or Install if it's already got them pre-loaded. Also go into the Advanced area and check Give me updates for other Microsoft products when I update Windows and Defer feature updates. |
¶ Windows Settings
While that is running, let's go over some configuration changes I normally use. You don't have to follow these but if you do, you'll be able to work more like how I do. Some of these changes won't really go into effect until after a reboot.
I normally make the following changes to the Windows Taskbar:
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|Screenshot |Description |
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|I remove icons I don't use from the bar, such as Cortana, TaskView and Edge or other programs I don't need there. |
| | |
| | |
| | |
|
| |
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|I go in and change the bar to only combine buttons when the bar is full as it's better for me to read the name when multiple windows are open than to have to mouse over it first |
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|On a Virtual Machine, I normally turn off all of the System Icons except the Clock but on local, I would keep the Network, Power and Volume icons as well. For tablets or touch screens, you may want to include Touch Keyboard. |
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|
|
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|

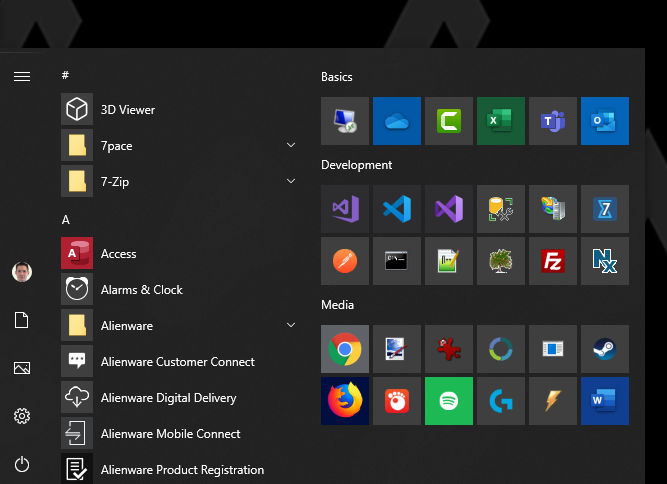

|In the start menu, I'm going to remove all the apps and things that I'm not going to use and then ones that I am going to use, I will change the size to small and organize them. I'll add the individual applications that we install after this at the same time towards the end.|
| | |
| | |
| | |
|
| |
+-------------------------------------------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
In Windows Server (Server builds only, not regular Windows 10), we will have to turn off IE Enhanced Advanced Security mode so that we can navigate to websites without having to add every domain we go to to a whitelist.
| Screenshot | Description |
|---|---|
| Open the Server Manager | |
| Click Local Server in the left side-bar and wait for the data to populate instead of saying "Unknown" everywhere | |
| You may need to scroll right to see the setting value, which is most likely "On" at this point | |
| Click the On and change both settings in the modal to Off, then click OK |
While you are here, you can change your time zone to the appropriate one. It normally defaults to Pacific (UTC-08:00).
Close the Server Manager.
¶ Ninite
Now I'm going to open the default browser (IE or Edge) and use it to go to Ninite where I can get a single install package that will install a bunch of programs for me instead of having to do them myself. Go to ninite.com and then check the following applications:
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|Screenshot |Description |
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|- Chrome\ |
| |- Firefox\ |
| |- 7-Zip\ |
| |- OneDrive\ |
| |- .NET 4.8\ |
| |- Silverlight\ |
| |- WinDirStat\ |
| |- FileZilla\ |
| |- Notepad++\ |
| |- WinMerge\ |
| |- Visual Studio Code\ |
| |- Any others you want to choose for your local |
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|Now download the package and save it to the Downloads folder.\ |
| |\ |
| |Open File Explorer and navigate to the Downloads folder.\ |
| |\ |
|
|We can take care of a couple of settings while we are here:\ |
| |1. Right-click the whitespace under Network in the left side-bar and select Expand to current folder. This will let the side-bar follow you as you navigate folders.|
| |2. I normally also select Show all folders.\ |
| |3. I normally unpin all of the folders under Quick access.\ |
| |4. Change to List View.\ |
| |5. Click View > Options.\ |
| |6. Change Open File Explorer to This PC.\ |
| |7. Uncheck Show recently used files in Quick access and Show frequently used folders in Quick access.\ |
| |8. Click Apply.\ |
| |9. Switch to the View tab.\ |
| |10. Click Apply to Folders.\ |
| |11. Change Hidden files and folders radio toggle to Show....\ |
| |12. Uncheck Hide empty drives, Hide extensions for known file types.\ |
| |13. Check Launch folder windows in a separate process and Restore previous folder windows at logon.\ |
| |14. Click OK. |
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|Close File Explorer and reopen it and navigate back to the Downloads folder. It probably looks like the screenshot to the left now. |
| | |
| |
|
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|
|Right-click the Ninite package and Run as Administr |
| | |
| |ator. Click Show details in the bottom left when the window comes up (there will be a prep window first). |
+-------------------------------------------------------------+------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
¶ IIS
Next, we want to install and configure IIS. To do this, we have to go to Windows Features and turn it on with the settings we want. The end of this will require a reboot, so be careful not to trigger it unless the other installs from Ninite and Windows Update are at a stopping point.
| Screenshot | Description |
|---|---|
| For Windows 10 Look for Internet Information Web Services and when you check that with the spacebar, it automatically selected certain things but not others and we need to make some choices that are not the defaults. - Turn off FTP Server - Turn on Common HTTP Features - Turn on Health and Diagnostics - Turn on Security - Turn on WCF - Turn on HTTP Redirect - Turn on WebDAV - You can optionally include IIS 6 if you need a local mail server, but I don't recommend it as it's not worth doing. | |
| Right-click the Start Pearl and select Programs and Features then click Turn Windows Features on or off from the left side-bar. | |
| If the first screen you get is Before you begin, you can check Skip this page by default and then click Next. Choose Role-based or feature-based installation and click Next. Choose Select a server from the server pool and ensure that the local box is highlighted in the Server Pool box and click Next. Choose Web Server (IIS) from the list of Roles and click Next. | |
| f | Check the following Features if they are not checked: - .NET Framework 3.5 Features - Everything under .NET Framwork 4.6 Features except Message Queuing (MSMQ) activation - IIS Hostable Web Core - WebDAV Redirector Click Next. |
| Click Next again to see Role Services. Expand the entire tree so you can see it all at once and check the following options if not already checked: - Everything under Common HTTP Features - Everything under Health and Diagnostics - Everything under Performance - Everythung under Security - Everything under Application Development - IIS Management Scripts and Tools - Management Service - You can optionally include IIS 6 if you need a local mail server, but I don't recommend it as it's not worth doing. |
Click Next. Click Install. After continuing from this, it should download anything it needs from the internet and run the install.
¶ Completion Check
Since we have configured several installs to run by now, we need to do a completion check here to ensure that they have all finished, including any reboots, until there are no further updates before continuing on to the next section.
¶ Continuing Software Installs and Setups
- Set up Chrome
-
Open Chrome
-
Sign In to Chrome
-
You should be given the opportunity to set Chrome as the Default Browser with a button but if you don't, you can set it using System > Default Apps
-
Load the plugins that you will need for development in Chrome, these are a few very helpful ones:
-
Push addons that you don't need to click off often to hide in the menu instead of the bar, I usually keep LastPass, uBlock and EditThisCookie out\
-
Whatever page you are on, open the Dev Tools in one of three ways:
- With Ctrl+Shift+I
- With F12
- Right-click an element on the page and choose Inspect
-
Make the dev tools extra wide for now so we can manipulate settings, we can shrink it again after
-
In the top-right, thre is a vertical three dot menu where you can choose:
- To dock the dev tools to a different side or undock it so it free floats
- I don't recommend free float as it causes you to lose track of which window the dev tools are for, especially when you have multiple dev tools open at the same time, which is a common practice.
- Show the Console Drawer
- When not on the Console tab you can use this menu item or press Esc to open the Console on the bottom part of the dev tools, to be viewed in addition to whatever tab you have open.
- The most common practice is either the Elements, Network or Sources pane open with Console below it.
- Because of this, I normally re-arrange the tabs to move Console further to the right out of sight and into the following order (click and drag to reorder):
- Elements
- The HTML in the page currently
- Network
- The requests to servers
- Set this tab up by:
- Checking Disable cache
- Clicking the top-right Gear icon
- Checking Use large request rows
- Many of our endpoints have multiple slashes in the route, large request rows lets you see more than just the content of the last slash, otherwise you will see a bunch that are the same like "Cache" and won't be able to tell the difference
- Unchecking Show overview
- Not a useful view and it takes up space
- Clicking the top-right Gear icon again to close it
- Clicking on XHR and then Ctrl-Clicking on JS to select these two together
- Right-clicking the Headers row of the network requests view (you will have to do this multiple times) and:
- Checking Method
- Unchecking Type (you are filtered to two types, so you know what they are)
- Unchecking Initiator (because of extensions like Usernap and how AngularJS runs, this almost always doesn't actually say what really started a request)
- Checking Response Headers > Content-Encoding
- Now resize your columns so that Waterfall is very narrow and the others are wide enough to read without becoming ellipses, starting with the 2nd column (the first one after Name). To get the last one before Waterfall, go back to the first one you resized (the second column) and drag it's left side to the right.
- Sources
- The source code
- Application
- Access to cookies and other data
- Console
- Output that doesn't go to the page
- ...Other tabs
- Elements
- When not on the Console tab you can use this menu item or press Esc to open the Console on the bottom part of the dev tools, to be viewed in addition to whatever tab you have open.
- Show the Settings pane and you can select a Dark theme (which will close the Settings pane as it reopens the dev tools with the theme change, you will have to reopen the Settings pane from there)
- On the Elements tab, there should be a section that has tabs in it named Styles, Computed, etc. Most likely, there is a double-right chevron/angle indicating there's more to see. Click this and choose AngularJS Properties. Unless you are actually on a page that has AngularJS running, this will be blank. I'm just making you aware that this is where you can inspect the Angular Scope of the elements you click to see the live data from the point it was clicked to find variable values, paths to functions, controllers, etc. If you do something in the page which should change the values, you will have to click a different element and click back to the original to see the changes as it doesn't update automatically.
- Close the Dev Tools with F12 or the x icon in the top-right
- To dock the dev tools to a different side or undock it so it free floats
-
- Install SSMS and SQL Server 2016 with service pack
- SQL2016
- If you are asked to sign in from this link, use your corporate email, which is also your MSDN account.
- If your login isn't active in MSDN yet, get Kevin Kramer to assist you in completing the setup.
- From the Download button on the right of this link's page choose the one without advanced services
- A download of about 438 MB should start
- On completion, go to your Downloads folder and right-click > Run as administrator
- Click Ok
- Let the Self Extractor complete, when it does, it will automatically open the Installation Center
- Click the first item: New SQL Server stand-alone...
- Accept the license terms
- Click Next
- On Install Rules, click Next
- On Feature Selection, click Next
- On Instance Configuration, change "SQLExpress" to "SQL2016" and press Tab (the ID should automatically update)
- Click Next
- On Server Configuration, click Next
- On Database Engine Configuration, change Authentication Mode to Mixed Mode
- Enter "p4ssw0rd!" as the new sa password
- Click Next
- The install will run
- After completion, click Close
- Close the Installation Center
- If you are asked to sign in from this link, use your corporate email, which is also your MSDN account.
- SSMS 18+
- Click the download link Download SQL Server Management Studio (SSMS)
- On completion, go to your Downloads folder and right-click > Run as administrator
- Click Install
- Let the installer run
- It will ask you to restart, wait for other installs to be at a stopping point and then let it.
- SQL2016
- LastPass
- Create a LastPass account
- Download the LastPass Universal Windows Installer
- This will install LastPass to all browsers on the system
- Right-Click > Run as administrator from the Downloads folder
- Follow all of the defaults until installation completes
- You may be asked to enable side-loads, accept this
- Open Chrome
- There should be a new extention icon in the upper right that is a square with three dots, it may be gray or yellow indicating you are not logged in. Click this button
- Sign in using your account
- Dismiss the Upgrade to Enterprise advert that it opens with on the button
- Send your username/email used for this account to James Gray to gain access to the Enterprise Share
-
This contains development logins across many client domains to assist with getting logged in more quickly and easily\
-
- PassPack
- Sign in, the necessary values for all the form inputs should be in your Welcome Packet PDF file
- PassPack is an older password sharing system that contains many legacy passwords. Each entry is usually only shared on a case-by-case basis as needed. It does not provide auto-fill options so entries in here have to be manually copied out and pasted into inputs.
- Microsoft Teams
- Download MS Teams
- Sign in using your corporate email and password
- You should have access to several channels and as you are added to projects to perform work, the Project Managers will add you to their invidual project channels.
- MS Teams is used as the primary form of electronic communication between team members to maintain an easy-to-use and persistant history. Emails are generally reserved for external communications.
- Git for Windows
- Download the installer
- Right-click > Run as Administrator
- On Select Destination Location, click Next
- On Select Components:
- If you are knowledgable of git bash, you can leave it integrated to Windows. I normally turn it off as I utilize other tools which also get added to the Explorer integration.
- Check Use a TrueType font in all console windows and Check daily for Git for Windows Updates
- On Select Components, click Next
- On Select Start Menu Folder, click Next
- On Choosing the default editor used by Git, choose your preferred editor (I use Notepad++ for this), click Next
- On Adjusting your PATH environment, choose Use Git and optional Unix tools from the Command Prompt, click Next
- On Chooisng HTTPS transport backend, click Next
- On Configuring the line ending conversions, click Next
- On Configuring the terminal emulator to use with Git Pash, choose Use WIndows' default console window, click Next
- On Configuring extra options, check Enable symbolic links, click Next
- Click Install
- Let the install run
- Uncheck View Release Notes
- Click Finish
- TortoiseGit
- If you prefer another Git GUI program, feel free to use it locally (but not on the servers without permission)
- Download the installer
- Right-click > Install
- Click Next
- Click Next
- Change the selection for English (GB) dictionary to Entire feature will be unavailable
- Click Next
- Click Install
- You may be prompted to close programs, tell it not to close them and continue
- This may occur more than once
- Click Finish
- The First Start Wizard will open
- Click Next
- Click Next
- Click Check now
- Ensure that a git version comes up (it should as we just installed it)
- Click Next
- Enter your Name (eg- "James Gray") and your corporate email (eg- "james.gray@claritymis.com")
- Click Next
- Click Finish
- Notepad++
- Open Notepad++
- Go to Plugins > Plugins Admin...
- Go through the list in the Available tab and check the following plugins:
- Compare
- EditorConfig
- JSLint
- JSON Viewer
- JSTool
- Save as admin
- TexFX Characters
- Tidy2
- XML Tools
- Click Install
- Click Yes
- Wait for the plugins finish installing and Notepad++ to come back up
- WinMerge
- Open WinMerge
- Click the Options button (orange with a wrench on it)
- Click Import...
- Download this file with your browser (you may have to log in to Teams in the browser to do so):
- Select this file in the Import window
- Click Tools > Filters
- Select Visual C# loose
- Click Edit
- Download this file with your browser:
- Open that file with Notepad++
- Copy the contents to the filters file that is being edited from WinMerge
- Save the file
- Click OK in WinMerge
- Close WinMerge
- Visual Studio Code
- Open Visual Studio Code
- Click Extensions (or press Ctrl+Shift+X)
- Search for Settings Sync by Shan Khan and install it
- An extension-specific Settings page will open
- Click Login with Github
- Sign in to Github (create an account if necessary)
- Click Authorize shalikhan
- Close the browser tab
- Click Skip (it will create a Gist for you) or select one oreviously used for this if you already have one
- Click Close
- Press Shift+Alt+D to download your current VS Code settings, it should start automatically configuring and installing extensions for you if you had previous values
- Search Extensions and install the following if not already installed (newer versions is fine):
- aessoft-class-autocomplete v0.1.0
- angular-bootstrap v4.0.9
- Angular1 v0.2.1
- auto-close-tag v0.5.6
- auto-rename-tag v0.1.0
- autoimport v1.5.3
- beautify v1.5.0
- bootstrap-3-snippets v0.1.0
- bootstrap4-vscode v6.1.0
- code-beautifier v2.2.1
- code-runner v0.9.11
- debugger-for-chrome v4.11.6
- docomment v0.1.8
- docthis v0.7.1
- EditorConfig v0.13.0
- githistory v0.4.6
- gitignore v0.6.0
- html-css-class-completion v1.19.0
- html-snippets v0.2.1
- JavaScriptSnippets v1.7.2
- Material-theme v2.25.3
- mssql v1.6.0
- npm-intellisense v1.3.0
- path-intellisense v1.4.2
- prettify-json v0.0.3
- sass-indented v1.5.1
- search-node-modules v1.3.0
- t4-support v0.4.3
- t4-syntax v0.1.0
- tt-processor v0.8.0
- visual-studio-blue-theme v0.0.1
- visual-studio-light-theme v0.0.7
- vscode-color v0.4.5
- vscode-gulp v0.0.4
- vscode-html-css v0.2.0
- vscode-icons v8.8.0
- vscode-less v0.6.3
- vscode-npm-script v0.3.8
- vscode-scss v0.6.2
- vscode-svgviewer v2.0.0
- vscode-theme-onelight v2.1.0
- xml v2.5.0
- Close Visual Studio Code
- Visual Studio 2017
- NOTE: With CEF 2020.1, we have begun incorporating C# 8 features which requires Visual Studio 2019 . You will need to download and configure VS-2019 in much the same way as VS-2017.
- Download the appropriate version from the above link Visual Studio Professional 2017 (version 15.9)
- Front End Team Members: Visual Studio Professional 2017 (version 15.9+)
- Back End Team Members: Visual Studio Enterprise 2017 (version 15.9+)
- You don't need to grab a license key, it will read it when you sign in to Visual Studio after install
- Download the installer
- Right-click > Run as Administrator
- Click Continue
- Let the Visual Studio Installer installer run
- The Visual Studio Installer will open automatically and start the install configure window
- Check .NET desktop development
- Check ASP.NET and web development
- Check Data storage and processing
- Check .NET Core cross-platform development
- Click the Individual Components tab at the top
- Check .NET Core runtime
- Check .NET Framework 3.5 development tools
- Check .NET Framework 4 targeting pack
- Check .NET Framework 4.5 targeting pack
- Check .NET Framework 4.5.1 targeting pack
- Check .NET Framework 4.5.2 targeting pack
- Check .NET Framework 4.6 targeting pack
- Check .NET Framework 4.6.1 SDK
- Check .NET Framework 4.6.1 targeting pack
- Check .NET Framework 4.6.2 SDK
- Check .NET Framework 4.6.2 targeting pack
- Check .NET Framework 4.7 SDK
- Check .NET Framework 4.7 targeting pack
- Check .NET Framework 4.7.1 SDK
- Check .NET Framework 4.7.1 targeting pack
- Check .NET Framework 4.7.2 SDK
- Check .NET Framework 4.7.2 targeting pack
- Check LINQ to SQL tools
- Check NuGet targets and build tasks
- Check Microsoft Test Manager
- Click Install in the bottom right
- It should download and install which will take some time
- At the end, it should open the sign-in prompt for the first time Visual Studio is opening
- Sign in using your corporate email and password
- Let Visual Studio come all the way up and then you can close it for now
- Close Visual Studio Installer
- The .NET 4.6.2 SDK that gets installed doesn't always work correctly, so get the direct package for it and install it:
- Get the TypeScript versions we have primarily used
- ReSharper
- Download and install ReSharper (there is only one installer, what gets activated is based on your license)
- Don't install the additional tools unless you intend to use them. Primarily the Testing tools and DotCover ones. Others are case-by-case. All of these additional tools require the Ultimate license
- Front End Team Members: Pro
- Back End Team Members: Ultimate
- After your 30 day trial expires, see James Gray for a license key to use on your local
- Servers such as DFO should use the license key for DFO (James Gray can provide this) as ReSharper is installed per Windows User Profile and not globally to the system
- Download and install ReSharper (there is only one installer, what gets activated is based on your license)
- Node.js
- Update: Recommended to install nvm-windows. react frontend uses node v16. May want to use chocolatey.
- v11.15 is the newest version we can support. 12.x breaks with some of the npm packages we use
- Download this file
node-v11.15.0-x64.msifrom the above link - Go to Downloads and Right-click > Install
- Click Next
- Check I accept...
- Click Next
- Click Next
- Click Next
- Click Next
- Click Install
- Let the installer run
- Redis
- Expand the Assets under 3.2.100 Pre-Release and download
Redis-x64-3.2.100.msi - Go to Downloads and Right-click > Install
- Run the install with all of the defaults
- Expand the Assets under 3.2.100 Pre-Release and download
- DevExpress Components
- If the link doesn't work, go to CVI - CEF in MS Teams, then Files and the DevExpressComponents-15.2.9.exe should be downloadable from there
- I noticed that the first time MS Teams is run, it may have trouble starting downloads. If this happens to you, quit MS Teams and start it again.
- Go to Downloads and Right-click > Run as administrator
- Choose Registered Installation
- Enter
receipts@clarity-ventures.com/qpzm9731as the username and password - Click Log In
- Uncheck the Source Code and Demo Applications buttons
- Click Next
- Click Accept & Install
- Let the install run
-
- ElasticSearch
- If the link doesn't work, go to CVI - CEF in MS Teams, then Files and the ElasticSearch.7z should be downloadable from General > Misc > Misc
- Extract the zip's contents to a folder
- Follow the instructions inside the
ReadMe.txtfile- You CANNOT use a different version of Java JRE
- I suggest putting kibana in the C:\Data\Tools\kibana directory
- Add kibana content
Restart the system to cement the recent changes and update PATH environment variables, this is important for the next steps.
- Install Gulp globally via Command Prompt:
npm install --global gulp-cli
- Set up Visual Studio 2017/2019
- Complete the JetBrains startup
- Select the first option when prompted about keyboard bindings
- Accept the JetBrains User Agreement (you have to scroll down first)
- Start trials for all of the JetBrains options
- Install Visual Studio Extensions
- Go to Tools > Extensions and Updates...
- Click Updates
- Click Update All
- Click Online
- Search for and add the following extensions:
- Productivity Power Tools
- Web Essentials 2017 (or 2019)
- Close the Extensions window
- Close Visual Studio
- The VSIX Installer will come up to install extensions
- After a time, the Modify button will become available, click it
- Let the installer run
- Start Visual Studio
- Go to Tools > Extensions and Updates...
- Click Online
- Search for and add the following extensions:
- .ignore
- Add New File
- Align Assignments
- Angular Productivity Tools
- Attach To All The Things
- Browser Reload on Save
- Browser Sync
- Bundler & Minifier
- Command Task Runner
- CommentsPlus
- Continuous Delivery Tools for Visual Studio
- Copy as Html
- CSS Tools
- Ctrl+Click Go To Definition
- Custom Document Well
- Double-Click Maximize
- Editor Enhancements
- Editor Guidelines
- EditorConfig Language Service
- File Icons
- File Nesting
- Fixed Mixed Tabs
- Git Ignore File
- Glyphfriend 2017 (or 2019)
- HTML Snippet Pack
- HTML Tools
- Image Optimizer
- Image Sprites
- Live Share
- Markdown Editor
- Match Margin
- Middle Click Scroll
- NPM Task Runner
- Open COmmand Line
- Peek Help
- Power Commands for Visual Studio
- Project File Tools
- Quick Launch Tasks
- Quick Web Debug
- ReAttach
- Roslynator 2017 (doesn't exist in 2019)
- Roslynator Refactorings 2017 (doesn't exist in 2019)
- RunAsAdmin
- Solution Error Visualizer
- StopOnFirstBuildError
- SVG Viewer
- Syntax Highlighting Pack
- T4 Toolbox for Visual Studio 2017 (or 2019)
- Time Stamp Margin
- Trailing Whitespace Visualizer
- Visual Studio IntelliCode
- VS Diff
- VSColorOutput
- Web Acessibility Checker
- Web Compiler
- ZenCoding
- Close the Extensions window
- Close Visual Studio
- The VSIX Installer will come up to install extensions
- After a time, the Modify button will become available, click it
- Let the installer run
- Start Visual Studio
- Install ReSharper Extensions
- Go to ReSharper > Extension Manager
- Click Install next to each of the following extensions:
- AsyncConverter
- MoqComplete
- Community External Annotations
- CyclomaticComplexity
- ReCommended Extension for ReSharper
- XML Doc Inspections
- StyleCop by JetBrains
- Check I have read and understand...
- Click Modify
- Let the extensions install
- Click Done
- Restart Visual Studio
- Import VS Settings
- Download this VS2017 settings file
- Download this VS2019 settings file
- Go to Tools > Import and Export Settings...
- Select Import selected environment settings
- Click Next
- Click No, just import new settings...
- Click Browse...
- Select the file from your Downloads folder
- Click Next
- Ignore the warning
- Click Finish
- Import ReSharper Settings
- Download this ReSharper settings file for VS2017
- Download this ReSharper settings file for VS2019
- Go to ReSharper > Manage Options
- Go to Import and Export > Import from file...
- Select the file from your Downloads folder
- Click OK
- Go to Tools > Options
- One of the settings that was added is a Keyboard binding that will toggle ReSharper on and off Ctrl+Shift+Num 0. Use this if you are having issues with ReSharper running.
- RunAsAdmin: Change to True
- Roslynator > Global Suppressions:
- Search for 1123 and check it
- Roslynator > Refactorings:
- Search for 0171 and check it
- Productivity Power Tools > PowerCommands > General: Check Remove and Sort Usings on Save
- Source Control > Plug-in Selection: Change to Git
- Go to ReSharper > Options > Select Performance Guide and follow the suggestions then click Save
- Complete the JetBrains startup
- Atomineer
- Back End Team Members Only
- After your 30 day trial expires, see James Gray for a license key
- Tangible T4 Editor
- Back End Team Members Only
- Disable startup apps
- Press Ctrl+Shift+Esc
- Click the Startup tab
- Disable apps that you don't intend to run with auto-updates, etc. to speed up your start time
- Pin desktop icons to the start menu and clear out
- Disk Cleanup (installers, downloads folder, SQLServer media)
¶ Development Code Setup
- Sign in to Azure DevOps
- Create Project Folders on your local
-
Naming conventions: By convention, Clarity stores repositories in the "C:\Data\Projects{project acronym}" folder on the servers. You can arrange them on your local however you want, so long as you can recognize them without adding extensive time to your work day.
-
Local develop branch folders\
-
- Clone the code:
- CEF
- DNN
- Configs
- https://clarity-ventures.visualstudio.com/CEF-Product/_git/CEF-Configs
- Config files that are not stored and why
- Check this out to the root of your drive like
C:\CEF-Configs - Copy the files into CEF and WEDB9 folders
- Fetch and Prune bat
- Reset Hard bat
- Configure Atomineer to point at CEF-Configs files
- https://clarity-ventures.visualstudio.com/CEF-Product/_git/CEF-Configs
- Default Branches
- Used release/2019.3 until the new release
- Rapidly adjusting configs for a checkout
- What are the settings?
- Plugins folder for Providers
- For CEF 2020.1 and later, create a Symbolic Link in Windows (sort of a virtual directory for the OS itself) for the Skin by running the following command in an command prompt running as administrator:
mklink /D "Link" "Target"- For Example:
cd "C:\Data\Projects\2019.3\_DEV\WEB9\Portals\_default\Skins\"mklink /D "Clarity-Admin" "C:\Data\Projects\2019.3\_DEV\CEF\08.Clarity.Ecommerce.UI.SKins\Clarity-Admin"- Using TortoiseGit, mark the new sumlink directories as Ignore On Commit
- Note that older versions of CEF don't do this, DNN just has the skin folder directly
¶ Set up the Web Server
- Open IIS Manager (Start > Windows Administrative Tools > IIS Manager) or Start > type "iis" > press Enter
- Click Get New Web Platform Components
- A browser page asking if you want to download and install WEB Platform Installer, do so and follow it's install process
- Close IIS Manager
- Open IIS Manager again
- This time a modal will open instead of a browser page
- Click the Products tab
- In the search box, type "Url Rewrite" and press Enter
- Click Get New Web Platform Components
- Click the Add button for Url Rewrite 2.1
- Click Install and let it finish, then exit out of this modal
¶ Development Site Setup (Instructions in progress!)
¶ Set Application Pool defaults
- In IIS, expand the server name so you can see Application Pools and Sites
- Click on Application Pools
- In the right side-bar, click "Set Application Pool Defaults..."
- Set ".NET CLR Version" to "v4.0"
- Set "Start Mode" to "Always Running"
- Set "Process Model > Identity" to "Network Service"
- Set "Process Model > Idle Time-out (minutes)" to "0"
- Set "Recycling > Regular Time Interval (minutes)" to "0"
- Click "OK"
¶ Add Application Pools
Click "Add Application Pool..." 5 times and enter the following names:
- "ClarityClient.com (proj-local.) (DNN)"
- "ClarityClient.com (proj-local.) (API)"
- "ClarityClient.com (proj-local.) (API-Storefront)"
- "ClarityClient.com (proj-local.) (Reporting)"
- "ClarityClient.com (proj-local.) (Scheduler)"
- Go to advanced settings for this pool and set Start Mode to Always Running
- Ensure the app pools are all turned off
¶ Add "DNN" site
Click "Add Website..."
- For "Site Name:" enter "ClarityClient.com (proj-local.)"
- Click "Select...", choose the "ClarityClient.com (proj-local.) (DNN)" application you created above from the dropdown menu
- Click OK
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\WEB" or whatever equivalent path you have on your local drive
- For "Host name:" enter "proj-local.clarityclient.com "
- Click OK
- Select the new "DNN" site in the "Connections" panel, then click "Configuration Editor"
- Click the "Section" dropdown at the top and choose "system.webServer/rewrite/allowedServerVariables"
- Click the "..." (for Collection) and add the following names:
- ORIGIN_HOST
- RESPONSE_Access-Control-Allow-Origin
- Close the modal
- Click Apply on the "Actions" panel
¶ Add "API" virtual application
In the "Connections" panel, right-click on the "Sites > DNN > DesktopModules > ClarityEcommerce" folder, then click "Add Application..."
- For "Alias:" enter "API"
- Click "Select...", choose "API" from the dropdown menu, then click "OK"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF \06.Clarity.Ecommerce.Service" or the equivalent path for your local
- Check "Enable Preload"
- Click OK
¶ Add "API-Storefront" virtual application
In the "Connections" panel, right-click on the "Sites > DNN > DesktopModules > ClarityEcommerce" folder, then click "Add Application..."
- For "Alias:" enter "API-Storefront"
- Click "Select...", choose "API-Storefront" from the dropdown menu, then click "OK"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF \06.Clarity.Ecommerce.Service.Storefront" or the equivalent path for your local
- Check "Enable Preload"
- Click OK
¶ Add "Scheduler" virtual application
In the "Connections" panel, right-click on the "Sites > DNN > DesktopModules > ClarityEcommerce" folder, then click "Add Application..."
- For "Alias:" enter "Scheduler"
- Click "Select...", choose "Scheduler" from the dropdown menu, then click "OK"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF \07.Clarity.Ecommerce.Scheduler" or the equivalent path for your local
- Check "Enable Preload"
- Click OK
¶ Add "Reporting" virtual application
In the "Connections" panel, right-click on the "Sites > DNN > DesktopModules > ClarityEcommerce" folder, then click "Add Application..."
- For "Alias:" enter "Reporting"
- Click "Select...", choose "Reporting" from the dropdown menu, then click "OK"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF \07.Clarity.Ecommerce.Reporting" or the equivalent path for your local
- Click OK
¶ Add "UI" virtual directory
In the "Connections" panel, right-click on the "Sites > DNN > DesktopModules > ClarityEcommerce" folder, then click "Add Virtual Directory..."
- For "Alias:" enter "UI"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF\08.Clarity.Ecommerce.UI" or the equivalent path for your local
- Click OK
¶ Add "documentation" virtual directory
Right-click the "UI" virtual directory created above, then click "Add Virtual Directory..."
- For "Alias:" enter "documentation"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\CEF\08.Clarity.Ecommerce.APIReference" or the equivalent path for your local
- Click OK
¶ Add "Ecommerce" (images) virtual directory
In the "Connections" panel, right-click on the "Sites > DNN > images" folder, then click "Add Virtual Directory..."
- For "Alias:" enter "ecommerce"
- For "Physical path:" enter "C:\Data\Projects\2019.3_DEV\Images" or the equivalent path for your local
- Click OK
¶ Setup the Web Server (continued)
Update Windows hosts file
- Run any text editor/IDE as an administrator
- Open "C:\Windows\System32\drivers\etc\hosts"
- Add "127.0.0.1 ['DNN' site host name]" at the bottom
- Close and save changes
These instructions have been verified up to this point. From here there are general guide points but the exact step-by-step instructions have yet to be completed. There are multiple guides and videos which can walk you through this part.
¶ Partially Verified Setup Instructions for your Local
- Pulling a database backup of DNN to local
- Add DNN Portal Alias
- DNN cache loading issue
- Pull the config files into CEF/WEB folders, especially rewrite configs
- DNN Connection string
- CEF Connection string
- CEF App Settings
- Old vs New
- CEF Gulp Config
- Old vs New
- Restart the app pools after *.config changes so it picks up the new values
- Setting up connections to all the different instances in SSMS
- Run
npm_uber_install.batto restore packages - Gulp and running Tasks, including watches
- Older tasks vs new ones
- First time load CEF solution
- Must Run as Administrator to attach to w3wp.exe
- Loading the tool windows
- Unit Test Explorer Window
- Unit Test Sessions Window
- Task Runner
- DataModel as startup project for package manger console
- Unloading Projects as last resort
- Config the Error List window (Group by Project, File; Remove Suppression State, Project, File; Add Column)
- Some Default Provider stuff (good examples)
- ReSharper Performance Tools
- Restore NuGet Packages
- Build Solution
- Run Update-Database for EntityFramework
- Run the Seed Database tests
- Injecting the Translations to CEF
- Opening in the browser
- Common websites to keep open
- FontAwesome 5 vs 4
- Turn on DNN App Pool
- DNN Page loaded
- Dev Tools open and config
- Turn on API App Pool
- Fixing configs
- Restart the app pools after *.config changes so it picks up the new values
- Turn on API App Pool
- Getting to CEF Admin
- Default CEF Sign ins
- Run elastic index from CEF Admin
- Turn on Scheduler App Pool
- Review Scheduler locations (Direct and Embedded)
- Turn on Reporting App Pool
Clarity Application Setup Guide v2.4, stripped of duplicate steps
¶ Setup the DBMS
- On each database, ensure that
NT AUTHORITY\NETWORK SERVICEand a SQL Login namedSQLLoginwith passwordp4ssw0rdis added as adbowner. - Add an empty database named
CEF_20193_DEV - Go to the database backup files:
\\fileshare.corp.claritymis.com\NASShare2\Data\Database\SQLB\- Find one named
DNN9_CEF_2019_2and copy the latest .bak file in it's folder to your local - Restore it to your local
- Right-click the "Databases" folder, then click "Restore Files and Filegroups..."
- Click "Device", click "...", then click "Add"
- For "Backup Location:" enter location of "DNN9_CEF_backup.bak", then click "OK"
- For the database name, enter "DNN9_20193"
- Verify the Security logins are on these databases
- After CEF is run for the first time, add translations:
- In the CEF Master UI Translations Sheet , go to the Translations-Stats tab, and copy the cell F1. Paste this into the empty query and run it with F5.
- Once it finishes running, delete everything in the query, and replace it with a copy/paste of cells F2 – F16 from Translations-Stats and run the new query.
- In CEF Master UI Translations Sheet, go to the Translation-Store tab, select the first execute in cell U2, and use the hotkeys Ctrl+Shift+Left Arrow and Ctrl+Shift+Down Arrow to select all the columns. Copy/paste this into a new SQL query and do the same for the for the executes in Translations-Admin tab into the same query. Hit F5 to execute the query.
¶ Setup the local config files
- Copy the "Solution Items" folder from "C:\Data\Projects\CEF-Configs\CEF-2019.3" into the "C:\Data\Projects\2019.3_DEV\CEF" folder
- Open the "C:\Data\Projects\2019.3\CEF\Solution Items" folder
- Open the "appSettings.config" file in any text editor/IDE
- Edit the settings to match your environment local paths and urls
- Search for and open the "connectionStrings.config" files in any text editor/IDE
- Replace "SQLB.corp.claritymis.com \SQL2016" with ".\SQL2016" or the appropriately named SQL instance
- Replace "user id=SQLLogin;password=p4ssw0rd;" with "Integrated Security=true;" or with the domain login information for the desired user.
- Ensure "Initial Catalog=" is set to the correct database name from above (i.e. the CEF database).
- web.connectionStrings.config (DNN)
- Copy the contents of the "D:\Data\Projects\CEF-Configs\WEB9-2019.2" folder into the "D:\Data\Projects\2019.3_DEV\WEB9" folder
- Open the copied "web.connectionStrings" file in an text editor/IDE
- Ensure "Initial Catalog=" is set to "DNN_20193"
¶ Build the CEF project
Open the CEF .sln file in VS Restore Nuget Packages
- Right click the solution and Restore NuGet Packages
- .sln should now build
¶ Build the WEB project
Open file explorer to C:\Data\Projects\2019.3\_DEV\CEF\08.Clarity.Ecommerce.UI
- Right-click
npm-uber-install.batand run as administrator Open command prompt cd C:\Data\Projects\2019.3\_DEV\CEF\08.Clarity.Ecommerce.UIor type cmd in the file path of this foldergulp build
